VC CAMERAS
SNAP U4 Series

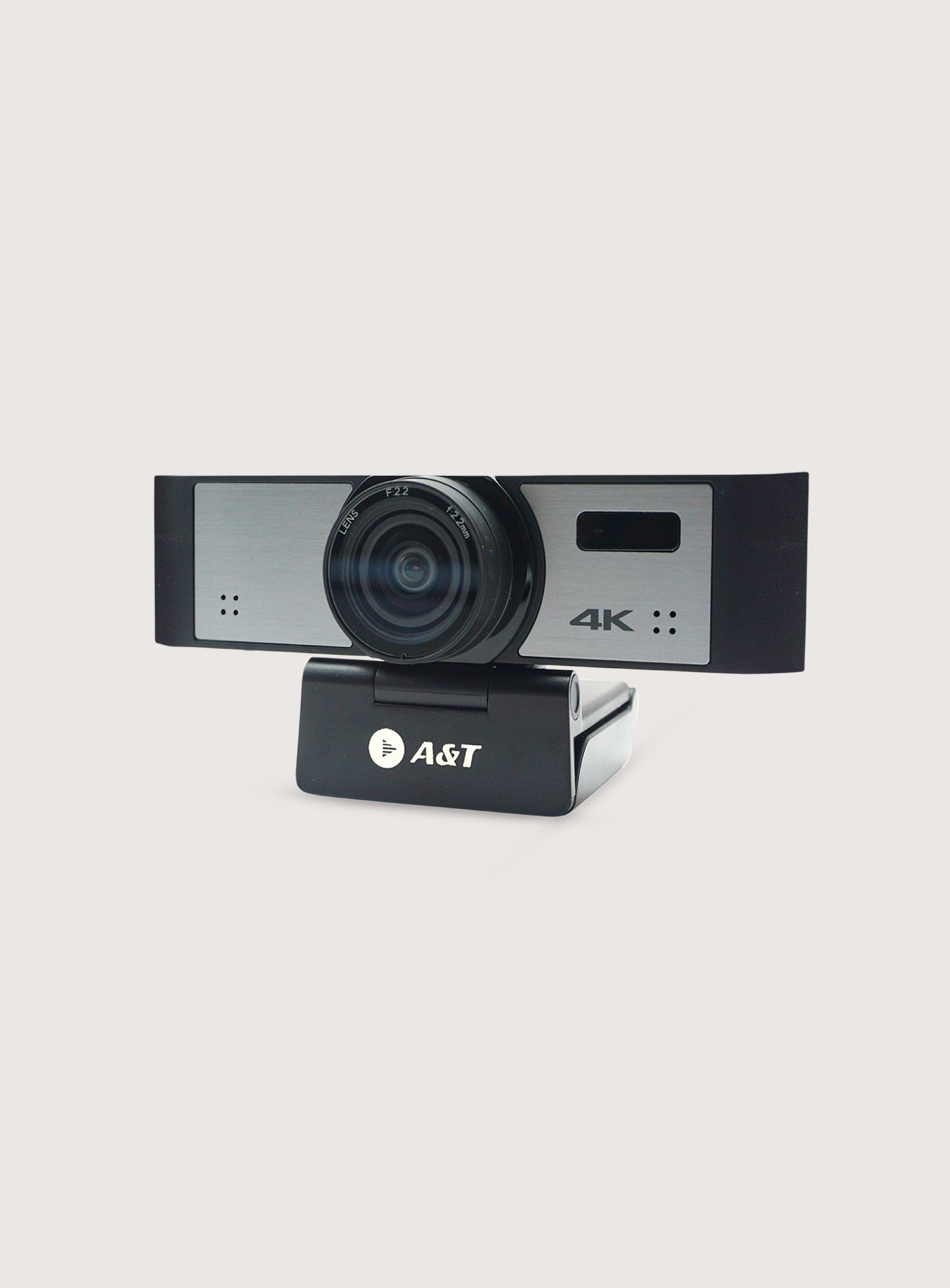

- Portable 4K USB video conference camera that is compatible with all video conferencing applications
- Perfect for small meeting rooms or conference rooms
- The wide-angle lens captures all the participants in a small room or huddle room
- The built-in microphone array captures every spoken word while eliminating background noise
- 1080p / 4K video
- Two built-in microphones
- USB 2.0 / 3.0 interface compatible with most laptops and desktops
- USB video conference camera compatible with all video conferencing applications
- Plug and play installation
- Huddle Rooms
- Small Conference Rooms
- Online Classrooms
SNAP U4-FULL HD
USB Video Conference Camera
- Image sensor: 1/2.8 Inch CMOS, Effective pixels:2.07 MP
- Scanning mode: Progressive Mode & M12 Lens Mount Type
- Lens: Focus Length: F=2.2mm
- FOV: 120°
- Zoom: 4X
- Minimum illumination: 0.5 Lux @(F.18, AGC ON)
- Shutter: 1/30s – 1/10000s
- White balance: Automatic, Indoor, Outdoor, Manual
- Digital Noise Reduction: 2D & 3D noise reduction
Audio & Video
- Video Resolution: 1080P@30fps, 720P@30fps
- Video Mode: H.264/MJPEG/YUY2/NV12
- Frame Rate: 30fps
- AI Features: –
- Audio: Built In Microphone array
- Audio Features: Unique Noise supression & Auto gain Algorithm
Interfaces
- Interface: USB 2.0 Type A
- Protocol; UVC 1.1
- UVC PTZ Control: Yes
Other Parameters
- Weight: 93g
- Power supply: 5V (USB Powered)
- Operating Temperature: 0 – 40 degree C
- Size: 118mm x 37.2mm x 30.8mm
- Operating Systems: Win 7, 8, 10, 11, Mac10.10 or higher
SNAP U4-4K
Camera
- Image sensor: 1/2.5 Inch CMOS, Effective pixels:8.29 MP
- Scanning mode: Progressive Mode & M12 Lens Mount Type
- Lens: Focus Length: F=2.2mm
- FOV: 120°
- Zoom: 8X
- Minimum illumination: 0.5 Lux @(F.18, AGC ON)
- Shutter: 1/30s – 1/10000s
- White balance: Automatic, Indoor, Outdoor, Manual
- Digital Noise Reduction: 2D & 3D noise reduction
Audio & Video
- Video Resolution: 4K@30fps, 1080P@30fps, 720P@30fps
- Video Mode: H.264/MJPEG/YUY2/NV12
- Frame Rate: 30fps
- AI Features: Auto Framing & AI Tracking
- Audio: Built In Beamforming Microphone array
- Audio Features: Unique Noise suppression & Auto gain Algorithm
Interfaces

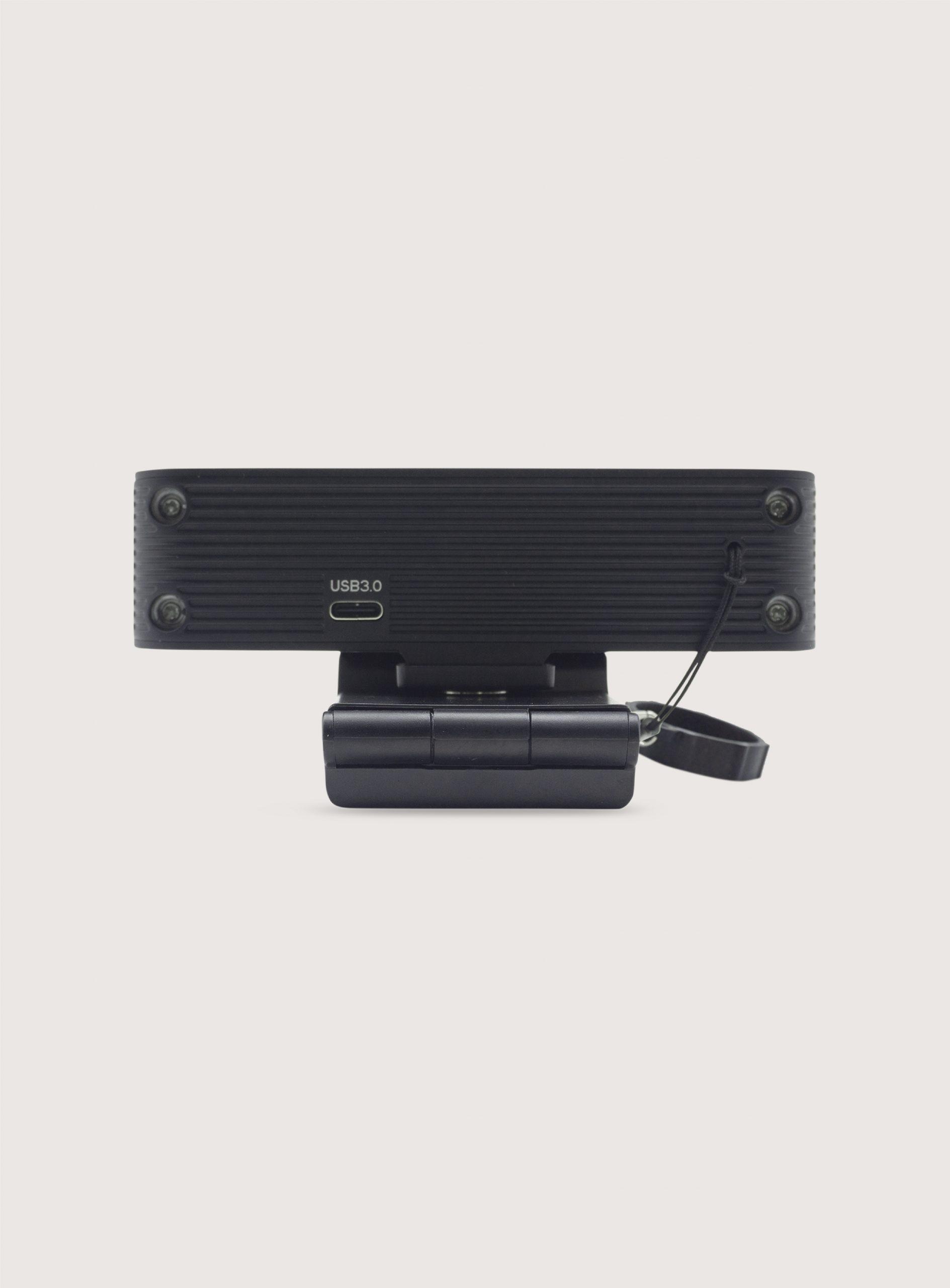

- Interface: USB 3.0 Type C
- Protocol; UVC 1.1
- UVC PTZ Control: Yes
Other Parameters
- Weight: 220g
- Power supply: 5V (USB Powered)
- Operating Temperature: 0 – 40 degree C
- Size: 118mm x 37.2mm x 30.8mm
- Operating Systems: Win 7, 8, 10, 11, Mac10.10 or higher
