Remote Control

12V/5A Power Adapter

Ceiling Mount Brackets

Cable Fixing Plates

RS-232 DIN 8 to D-Sub 9 Cable

RS-232 In/Out Cable

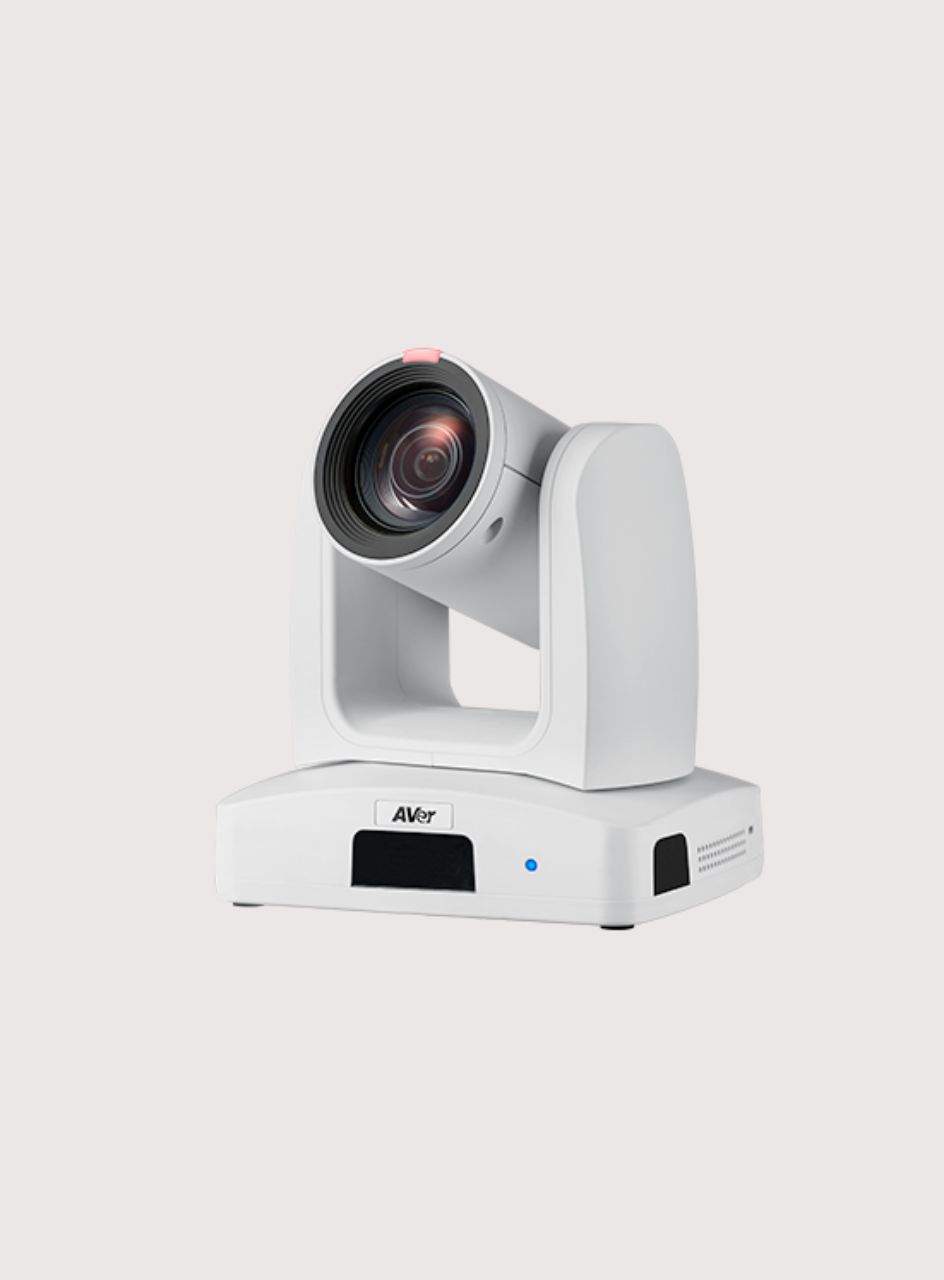

Camera

• Image Sensor: 1/2.8” 1080p Sony Exmor CMOS
• Output Resolutions: 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
• S/N Ratio: ≥ 50 dB
• TV Lines: 1000 (Center)
• Exposure Control: Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
• Optical Zoom: 12X
• Total Zoom: 144X
• Focal Length: f = 3.9 mm (Wide) to 46.8 mm (Tele)
• Minimum Working Distance: 0.3 m (Wide), 1.5 m (Tele)
• Pan / Tilt Speed (Manual): Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
• Preset Positions: 10 (IR), 256 (RS-232, RS-422, IP)
• Camera Control – Protocols: VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP), ONVIF
• Power Frequencies: 50 Hz, 60 Hz
• Effective Picture Elements: 2 Megapixels
• Minimum Illumination: 0.46 lux (IRE50, F1.6, 30fps)
• Gain: Auto, Manual
• Shutter Speed: 1/1 to 1/32,000 sec
• White Balance: Auto, Manual, ATW, One Push
• Digital Zoom: 12X
• Viewing Angles: DFOV: 80.6° (Wide) to 7.7° (Tele), VFOV: 44.1° (Wide) to 3.8° (Tele), HFOV: 72.8° (Wide) to 6.7° (Tele)
• Aperture (Iris): F = 1.6 (Wide) to 2.8 (Tele)
• Pan / Tilt Angles: Pan : ±170°, Tilt : +90° / -30
• Preset Speed: Pan : 200° / sec, Tilt : 200° / sec
• Camera Control – Interfaces: RS-232 (DIN8), RS-422 (RJ45), IP
• Image Processing: Noise Reduction (2D / 3D), Flip, Mirror

AI Function

• Mode: SmartShoot

Audio

• Channels: 2ch Stereo
• Codecs: AAC-LC

Interface

• Video Outputs: 3G-SDI, HDMI, IP, USB
• Audio Inputs: MIC in, Line in
• Audio Outputs: 3G-SDI, HDMI, IP, USB

Interface

• Power Requirement: AC 100 – 240V to DC 12V/2A
• Power Consumption: 19W
•  PoE: PoE+
• Dimensions (W x H x D): 180.0 x 192.0 x 145.0 mm
• Net Weight: 2.0 (±0.1) kg
• Application: Indoor
• Tally Lamp: Yes
•  Security: Kensington Slot
• Remote Control: Infrared
• Operating Conditions: Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
• Storage Conditions: Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%

IP Streaming

• Resolution: 1080p 60fps
• Network Video Compress Formats: H.264, H.265, MJPEG
• Maximum Frame Rate: 1080p 60fps
• Bit-Rate Control Modes: VBR, CBR (selectable)
• Range of Bit-Rate Setting: 512 Kbps to 120 Mbps
• Network Interface: 10 / 100 / 1000 Base-T
• Multi-Stream Capability**: 5, 1080p 60fps: RTSP, HDMI, USB, NDI^® HX & 3G-SDI
• Network Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
• NDI^®HX: Yes

USB

• Connector: USB 3.1
• Video Formats: MJPEG, YUY2
• Maximum Video Resolution: 1080p
• USB Video Class (UVC): UVC 1.1
• USB Audio Class (UAC): UAC 1.0

Web UI

• Live Video Preview: Yes
• Camera PTZ Control: Pan, Tilt, Zoom, Focus, Preset Control
• Camera / Image Adjustment: Exposure, White Balance, Picture
• Network Configuration: DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

• IP Search and Configuration Tool: Support Windows^® 7 or later
• PTZ Management: Support Windows^® 7 or later
• PTZ Control Panel: Supports iOS & iPadOS^® 11 or later
• PTZ Link: Supports Windows^® 7 or later, macOS^® 10.14 or later
• OBS Plugin for PTZ Cameras: Supports Windows^® 8 or later, macOS^® High Sierra v10.13 or later
•  CaptureShare: Supports Windows^® 7 or later, macOS^® 10.14 or later
